Automation is a premium feature on ScanRev that allows you to automate your data entry tasks and lets you process thousands of images/ pages quickly.

Scripts and Automated Recognition (Barcode Automation) can help you populate multiple data fields for hundreds of documents in one go. It even automates document creation for a batch of scanned images.

Here’s how you can use both these features-

  1. Login to REV
  2. Navigate to the Indexing screen and add images.
  3. Now select the repository where you want to run the automation.

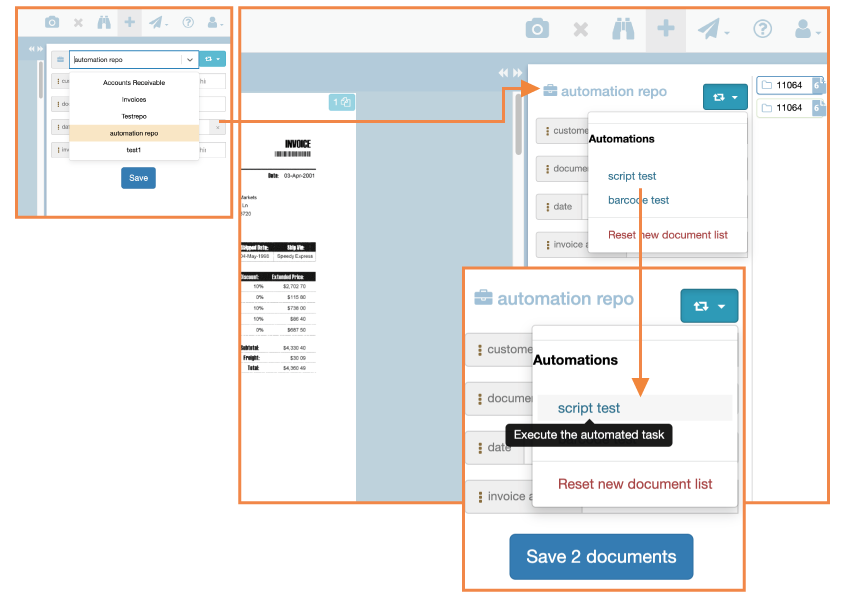

  4. Click on the automation you want to run from the ‘Automations' dropdown button — for example, in the image shown below, select either ‘script test’ or ‘barcode test’. This will run the automation on your selected documents.
     Once the automation has completed, the images will get split into separate documents or the data fields will get populated as per the instructions in the automation set-up by your admin.





Automated Script or Barcode Recognition automates the task of creating documents by scanning barcodes on your scanned images. Every page that has a different barcode from the previous page, gets instantly saved as a new document when you run this automation.



How to setup Barcode feature-

  1. Upload the files on REV using the ‘browse files’ or ‘drag and drop’ method
  2. Select the repository to save the indexed documents in it
  3. Click on the Settings icon on the top right corner, next to the repository name.
  4. Click on ‘Create a new automated task’
  5. Give a name to the automation task, say Barcode test

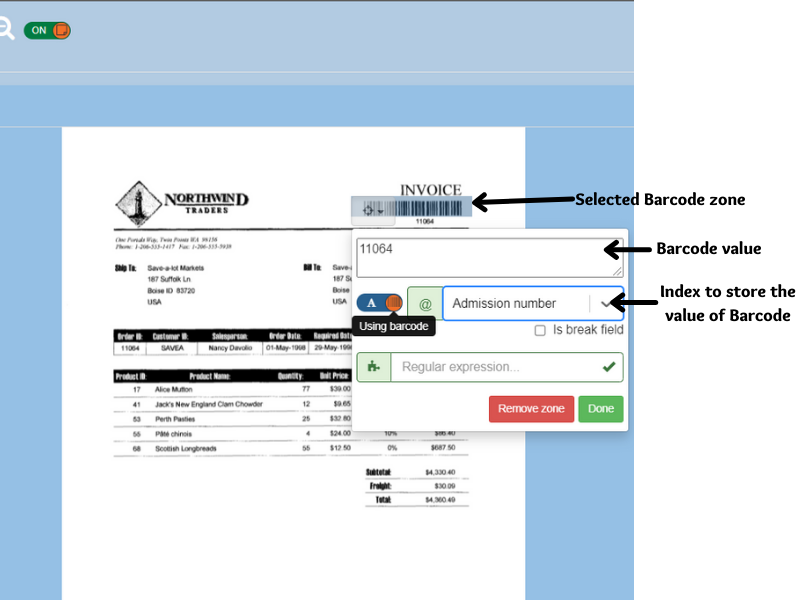

  6. Select the zone containing the barcode image, as shown below.


  7. Select the indexing option to store the barcode value in.
  8. The barcode value is displayed on the top of the dialog box
  9. Click on ‘Done’ to save the Barcode automation feature
  10. Now again Click on the settings icon on the top right corner, next to the repository name.
  11. Select ‘Barcode test’
  12. Rev will run the ‘Barcode test’ automation feature on all the uploaded images.
  13. The images will get split into different documents as per the indexing value obtained from the ‘Barcode test’



How to setup Zone OCR feature in REV-

  1. Upload the files to index using the OCR feature on REV using the ‘browse files’ or ‘drag and drop' method
  2. Select the repository
  3. Click on the Settings icon on the top right corner, next to the repository name.
  4. Click on ‘Create a new automated task’
  5. Give a name to the automation task, say ‘OCR test’

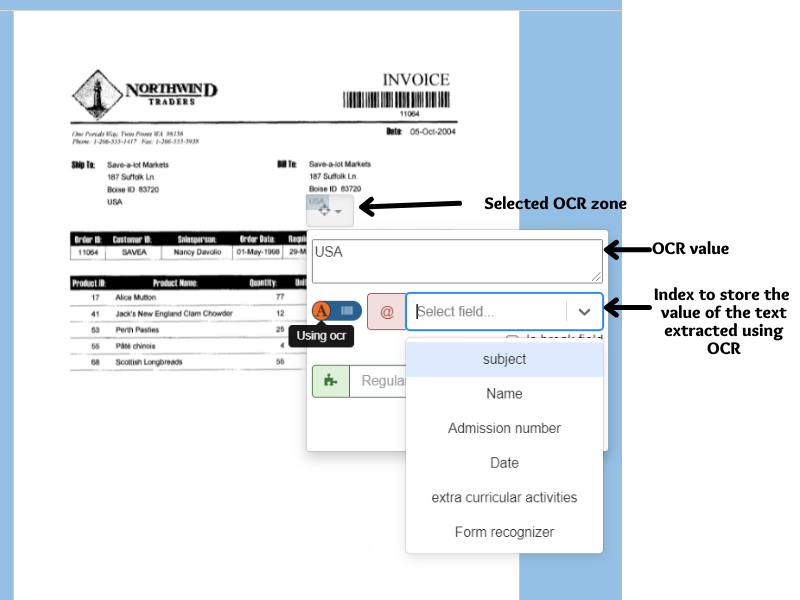

  6. Select the zone containing the text value to be extracted using the OCR feature, as shown below.




  1. Select the indexing option to store the OCR value in.
  2. The value obtained is displayed on the top of the dialog box
  3. Click on ‘Done' to save the OCR automation feature
  4. Now again Click on the settings icon on the top right corner, next to the repository name.
  5. Select ‘OCR test’
  6. Rev will run the ‘OCR test automation feature on all the uploaded images.
  7. The images will get split into different documents as per the indexing value obtained from the ‘OCR test’
